Citroën hydroshow, MS Holland

hydroshow
H x L x B
H x L x W
Schaal
Scale
Bestelnr
Partnr
115 x 450 x 83mm h0 Gratis
115 x 450 x 83mm 1:87 Free Download

Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial-NoDerivs 3.0 Unported License

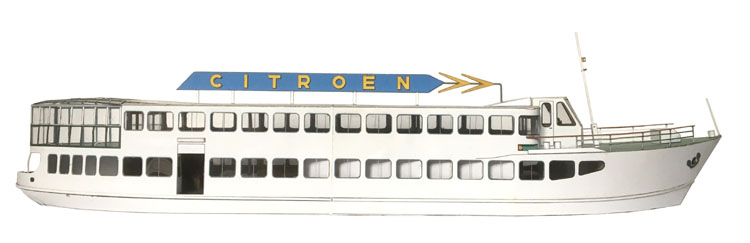

A Dutch CitroŽn dealer in the 60s often did not have a showroom to display the new CitroŽn models to their customers. For that reason CitroŽn modified a ship to act as a floating showroom. The ship visited more than 70 cities in the Netherlands during 1959 and 1960.
More information about the CitroŽn Hydroshow at nuancier DS

This model can be build in a simple form or with cutout windows and the full interior. LED lighting and H0 model cars can be added to the model as extras.

The model is designed to be printed on 160 grams waterresistant photopaper. Additionally some cardstock is needed as indicated.

CitroŽn dealers in de jaren 60 hadden vaak geen toonzaal om de nieuwe CitroŽn modellen aan de klanten te tonen. Daarom had CitroŽn een schip laten aanpassen om rond te varen langs meer dan 70 steden in Nederland in 1959 en 1960.
Meer informatie over de CitroŽn Hydroshow at nuancier DS

Dit model kan gebouwd worden in een eenvoudige vorm of met uitgesneden ramen en een volledige binneninrichting. Het model kan verder nog uitgerust worden met LED verlichting en H0 modelauto's.

Het model is ontworpen om op 160 grams watervast fotopapier af te drukken. Voor het bouwen van het model is verder nog karton van verschillende diktes benodigd.


hydroshow

A lot of time and effort has gone into this model. So if you like this model please make a donation. The donation will be used to cover the running cost of this website.


Citroën hydroshow pagina 1 schaal h0 / page 1 scale 1:87



Citroën hydroshow pagina 2 schaal h0 / page 2 scale 1:87



Citroën hydroshow pagina 3 schaal h0 / page 3 scale 1:87



Citroën hydroshow pagina 4 schaal h0 / page 4 scale 1:87



Citroën hydroshow pagina 5 schaal h0 / page 5 scale 1:87



Citroën hydroshow pagina 6 schaal h0 / page 6 scale 1:87



Citroën hydroshow pagina 7 schaal h0 / page 7 scale 1:87



Citroën hydroshow pagina 8 schaal h0 / page 8 scale 1:87



Citroën hydroshow instructie pagina 1 schaal h0 / instructions page 1 scale 1:87



Citroën hydroshow instructie pagina 2 schaal h0 / instructions page 2 scale 1:87



Citroën hydroshow instructie pagina 3 schaal h0 / instructions page 3 scale 1:87



hydroshow

The model can be build in a simple form without the interior and without cutting the individual windows. This way the model is more suitable for the inexperienced builders.


hydroshow hydroshow

If you decide to cut the windows to show the interior then it is advised to use a firm transparent foil for the windows. in the front corner and the rear glass section bend the foil before glueing.

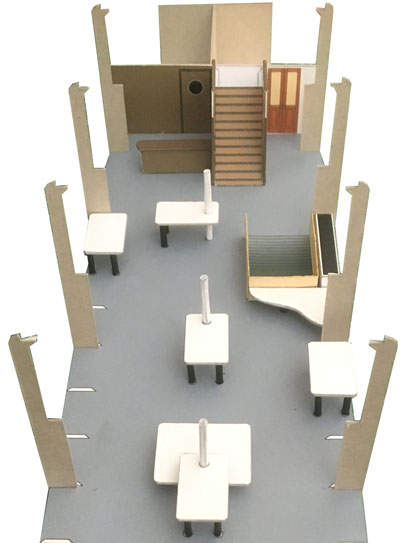

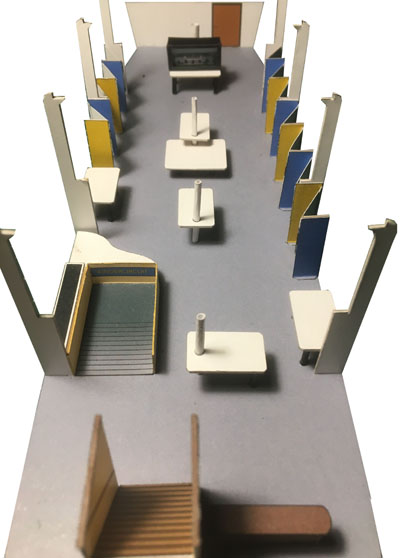

The interior is based on photographs of the actual ship. On the tables several Citroën models were displayed as wel as a 2CV en Panhard engine.


hydroshow

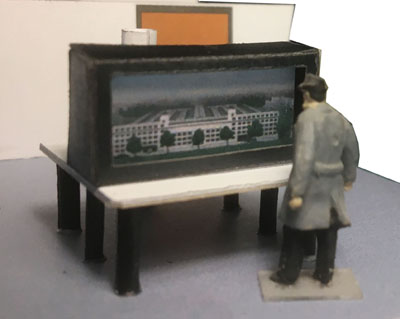

This picture shows a "visitor" looking at the model of the Citroën factory in Paris.


hydroshow

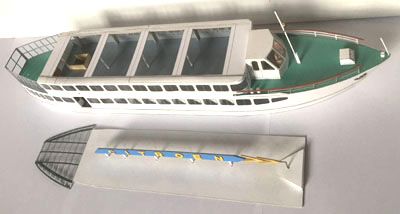

The top deck had space for 4 Citroën cars which were lifted on the boat via the removable rear deck roof. The rear deck housed the new Citroën ID19F Break and inside a Citroën DS a 2CV berline and a 2CV van were placed.

In order to install H0 model cars on the top deck the top deck can be placed without glue.


hydroshow hydroshow

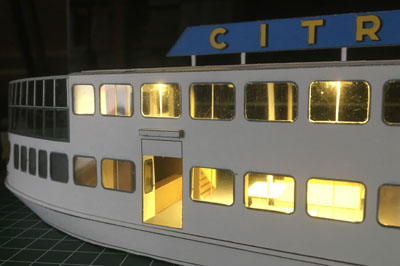

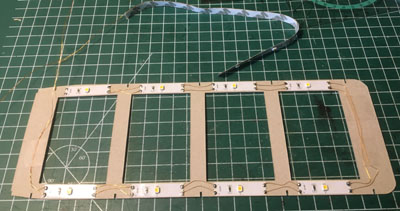

If you would like to see more of the interior LED lights can be installed in the interior. You can use cheap LED light strips or individual LEDs. I used 5V LED light strips which can be lid with a 5V powerbank.
